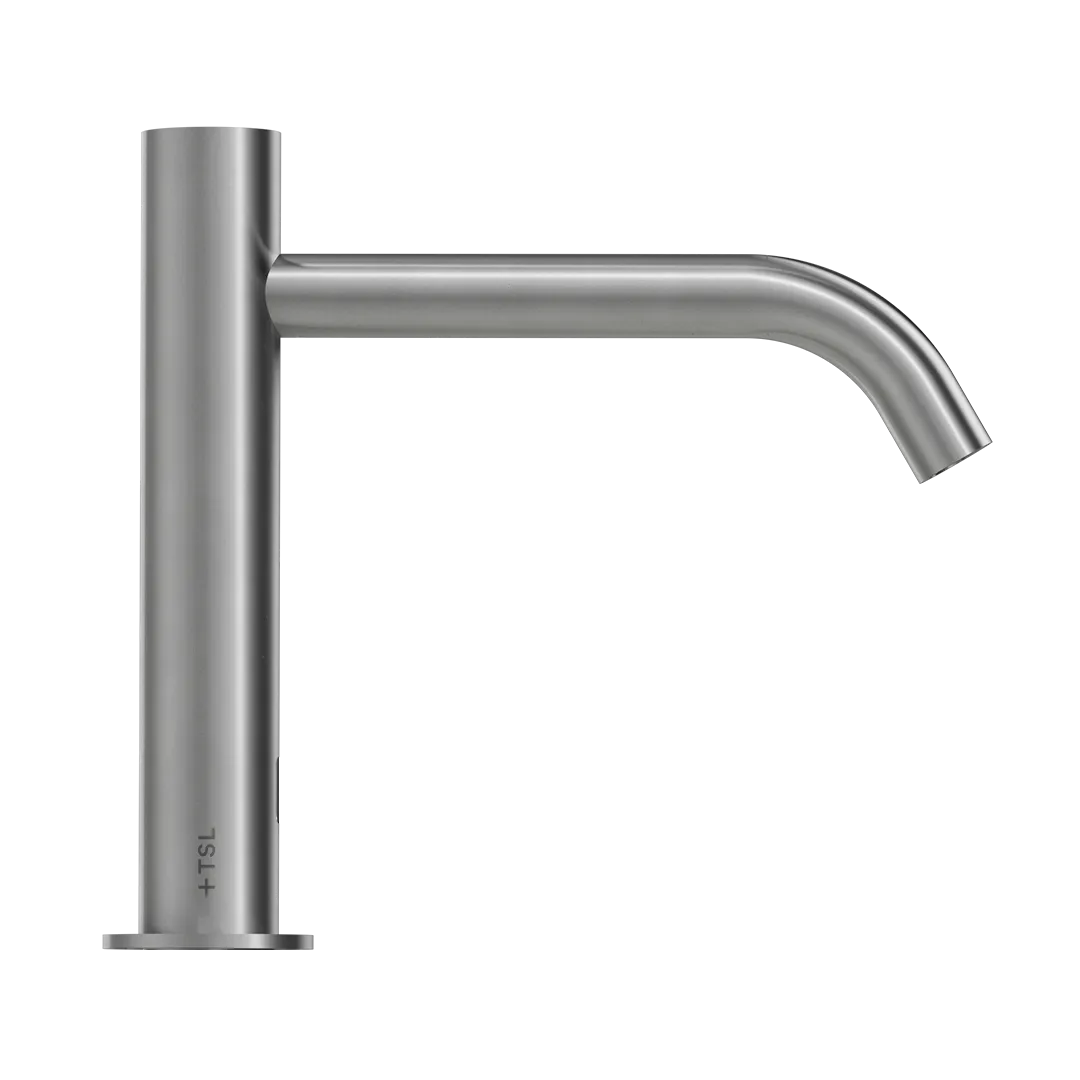

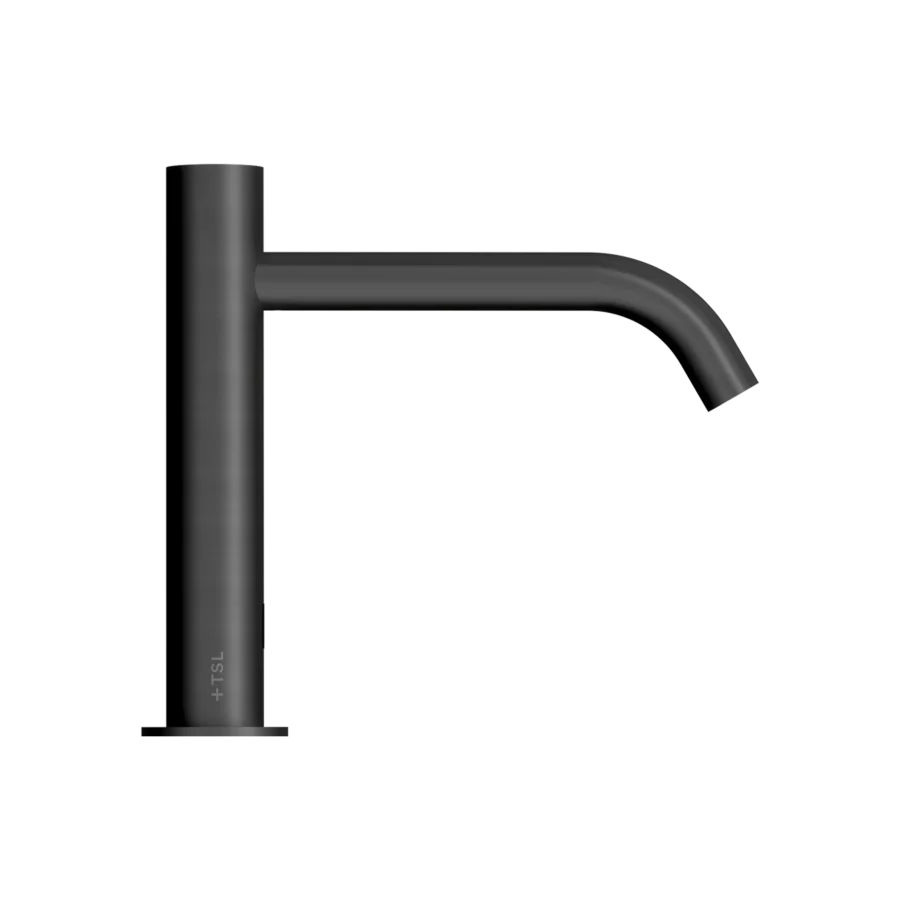

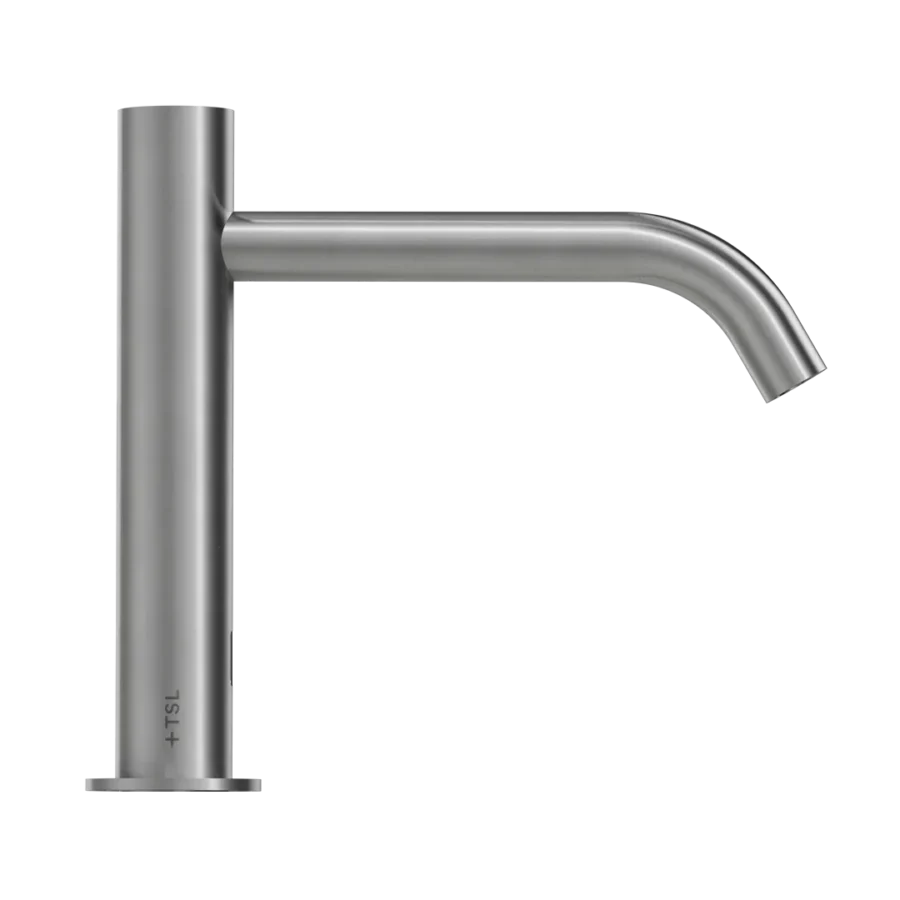

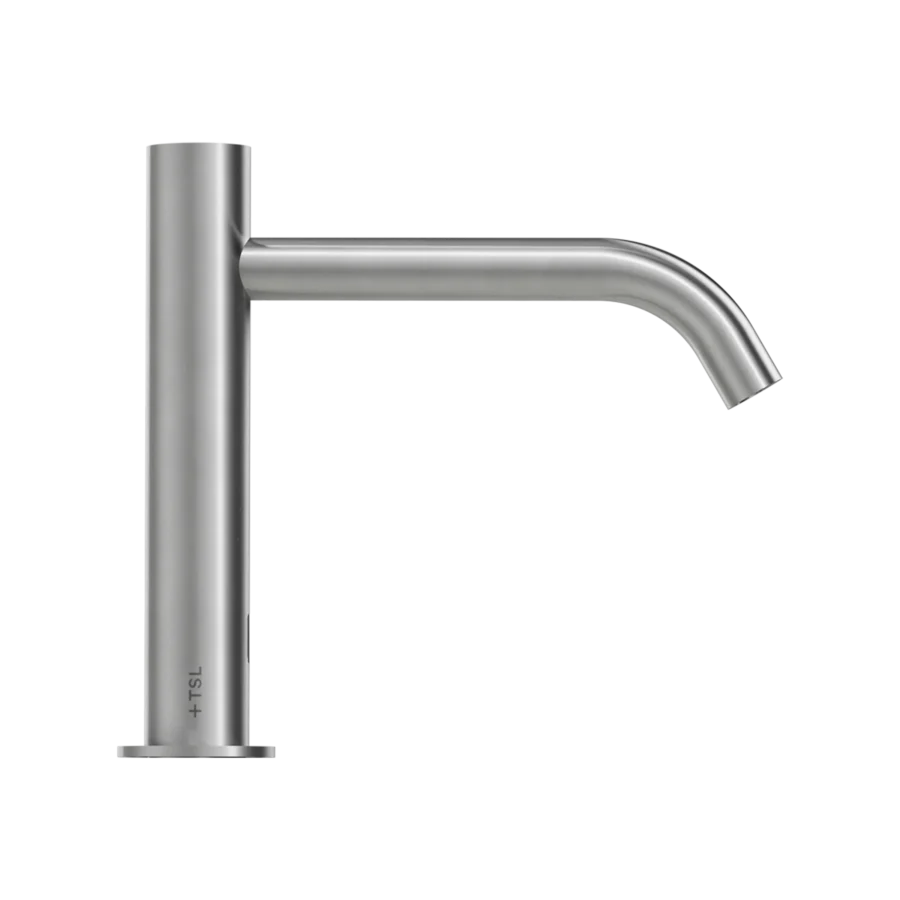

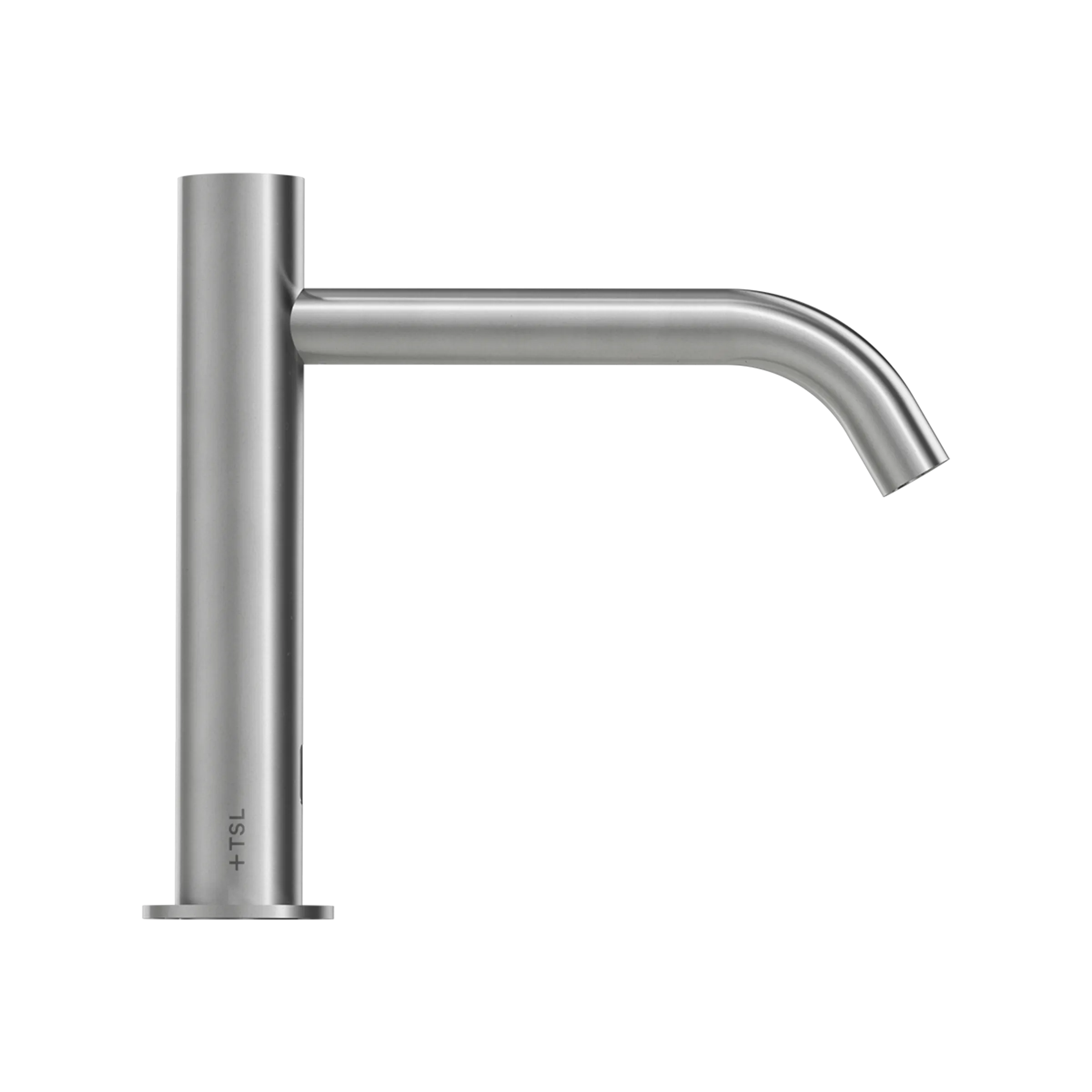

TSL.960

Sensor Deck Mounted / Large

View downloads
  • Touch-free Infra-Red sensor
  • Efficient design saves water
  • Luxurious user experience
  • Highest BREEAM and LEED standard
satinClear

    Request a Quote

    Our team will respond within 48 business hours.











    Request Trade Pricing: Select Business Type

    Interested in more products? Share below. Or, for enquiries over three items, please submit requests via email to info.uk@thesplashlab.com







    Download data sheet

    Clean lines. Clean design. Clean hands.

    The simplicity of form and clean lines allow the TSL.960 IR sensor tap to work across many design intents, and its thoughtful proportions have been calculated to complement our Monolith basin system and deck mounted soap dispenser range. Bauhaus inspired, the TSL.960 is milled from solid stainless steel and is available in our 5 signature PVD finishes.

    The TSL.960 utilises robust Infra-Red technology, offering sensor stability and longevity which is critical when specifying in public or semi-public spaces, such as busy offices.

    Every product in the range also benefits from an anti-rotation collar, which in addition to the solid steel construction gives them a durability which belies their slender looks. The tap offers flexibility of power source; either mains or battery, which can be helpful when specifying on retrofit schemes.

    Sustainable and beautiful

    With clients rightly more conscious of ongoing operational costs and sustainability when selecting products for their space, our design attention has been focused on reducing the water flow of this deck mounted sensor tap range, without compromising on user experience.

    By the implementation of a cascade aerator to control the flow rate to 1.8L/min, the TSL.960 achieves the highest BREEAM and LEED standards whilst delivering a soft and luxurious water delivery to the hands. Lower flow rates can also be achieved if needed. This product is WRAS approved.

    Consistent visual language

    Another subtle but critical benefit of specifying the TSL.960 alongside any other product within the TSL range, is the consistency of both colour and material finish and the ability to retain a consistent visual language across the whole washroom; paramount for a cohesive user experience.

    We help you achieve consistency in your restroom not just through complementary product forms but also via our signature brushed stainless steel and curated palette of rich, coloured PVD finishes.

    Our attention to detail, quality assurance and high level of craftsmanship results in simple design solutions that make public and commercial washroom environments not just better, but beautiful.

    Technical Data: Mechanical

    Weight

    1.5kg

    Material

    AISI 304 Stainless Steel

    Min/Max pressure

    0.5 - 7.5 bar

    Flow Rate

    3.8 litres/minute; also available - 1.3l/min spray, 1.89l/min spray

    Aerator

    Cascade flow

    Coating Type

    PVD (colours only)

    Max hot water temperature

    60°C

    Temperature control

    Internal mixer cartridge; not thermostatic

    Warranty

    2 years from date of purchase

    Weight

    1.78KG

    Stainless steel grade

    304

    Technical Data: Electrical

    Power Supply (Battery)

    6V CR-P2 Lithium Battery

    Power Supply (Mains)

    100-240V; 1.5A; 50-60Hz PSU.

    Output (Max)

    6V; 6W max

    Power Consumption

    < 80μA

    Solenoid Valve

    6V

    Water Ingress (PSU)

    IP67

    Cable Lengths

    Connection to sensor cable - 400mm
    Connection to fused supply - 1.5m

    Technical Data: Sensor

    Sensor Type

    Infra red

    Pre-set sensor range

    120mm

    Maximum sensor range

    250mm

    Comfort Delay

    2 seconds

    Security Time-out

    30 seconds

    Operating Temperature

    0 to 50oC

    Response Time (max)

    < 300ms

    Features Data

    Related Documents

    Installation and maintenance manual and warranty document: email: technical@thesplashlab.com

    Technical drawings

    The Splash Lab go above and beyond to make sure the end product is exactly as designed and functioning as intended.
    PGAL International Design Firm

    Begin making the essential, exceptional

    Sensor Deck Mounted / Large

    TSL.960

    Welcome to the support page for the TSL.960 Sensor Deck Mounted (large). On this page you’ll find video guides to repairs, common fixes, and general repairs. Plus there is a list of FAQs you may find helpful. If none of this answers your question. Please don’t hesitate to get in touch.

    FAQs

    What is the current lead time on your products?

    The average lead time on all our products is currently 6 to 8 weeks.

    What is the flow rate of your taps?

    A The flow rate of our taps is dependent on which flow restrictor is fitted and the pressure achieved in your installation.

    TSL990 & TSL 960 come with a 3.8 (1 gallon) per minute flow restrictor.

    The flow restrictors are supplied in the box, but are not pre-fitted to the tap. It is down to the installer to fit the restrictor to the system.

    What water pressure do your taps require?

    Our solenoid valves work within a dynamic pressure of 0.5-8 Bar (7.3-116psi). To achieve optimal flow rate from the tap a regulated pressure of 3 bar(43.8psi) is recommended, pressures lower or higher than this will decrease the flow rate from the tap.

    Pressures outside of the range may prevent the valve from opening and closing.

    Where can I obtain spare parts?

    Any spare parts related to your product can be found above. If you would like to see our full range of spare parts please click here.

    Do you offer an installation service?

    Yes, we can offer an installation service to suit your needs. Please contact technical@thesplashlab.com with details of your requirements and we will be happy to assist.

    Common fixes

    How to change the aerator

    These videos are The Splash Lab TSL recommendations and any work, especially on electrical products, must be undertaken by a qualified professional. The Splash Lab (TSL) is not responsible for any event because of following the instructions in these videos

    how to change the solenoid valve

    These videos are The Splash Lab TSL recommendations and any work, especially on electrical products, must be undertaken by a qualified professional. The Splash Lab (TSL) is not responsible for any event because of following the instructions in these videos

    How to clean the solenoid valve

    These videos are The Splash Lab TSL recommendations and any work, especially on electrical products, must be undertaken by a qualified professional. The Splash Lab (TSL) is not responsible for any event because of following the instructions in these videos

    How to change the sensor

    These videos are The Splash Lab TSL recommendations and any work, especially on electrical products, must be undertaken by a qualified professional. The Splash Lab (TSL) is not responsible for any event because of following the instructions in these videos
