TSL.420

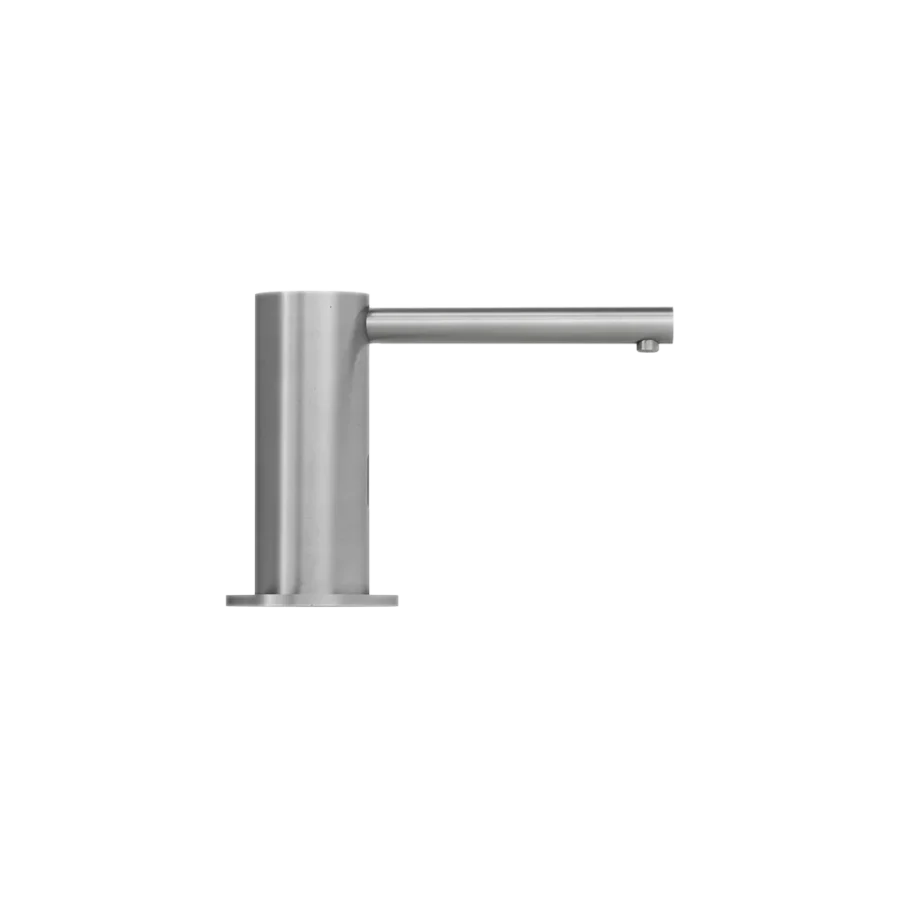

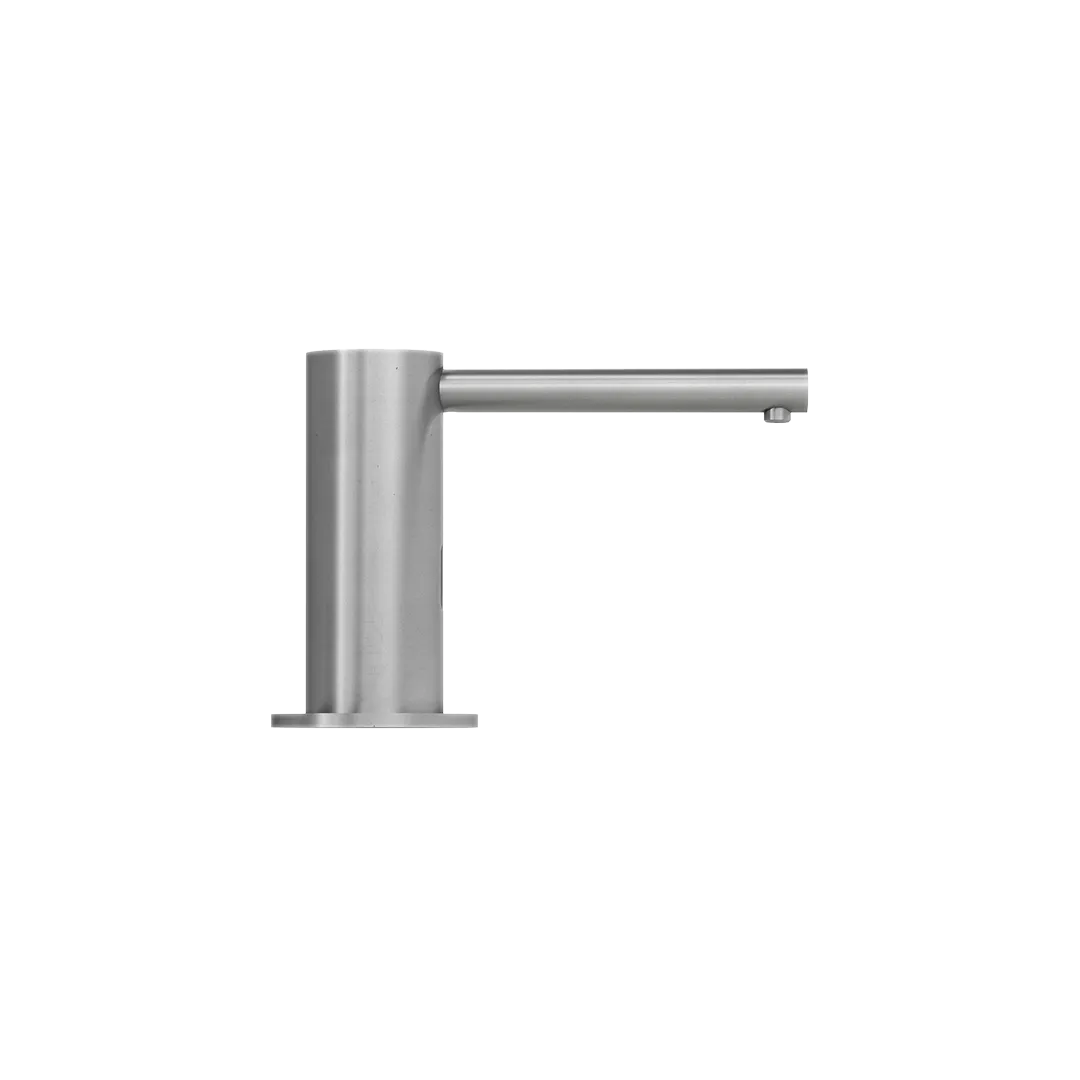

Sensor Deck Mounted Soap Dispenser

View downloads
  • European Infra-Red technology
  • Sensor stability and longevity
  • Anti-rotatonal collar
  • Soap foamer unit with dosage adjustability
satinClear

    Request a Quote

    Our team will respond within 48 business hours.











    Request Trade Pricing: Select Business Type

    Interested in more products? Share below. Or, for enquiries over three items, please submit requests via email to info.uk@thesplashlab.com







    Download data sheet

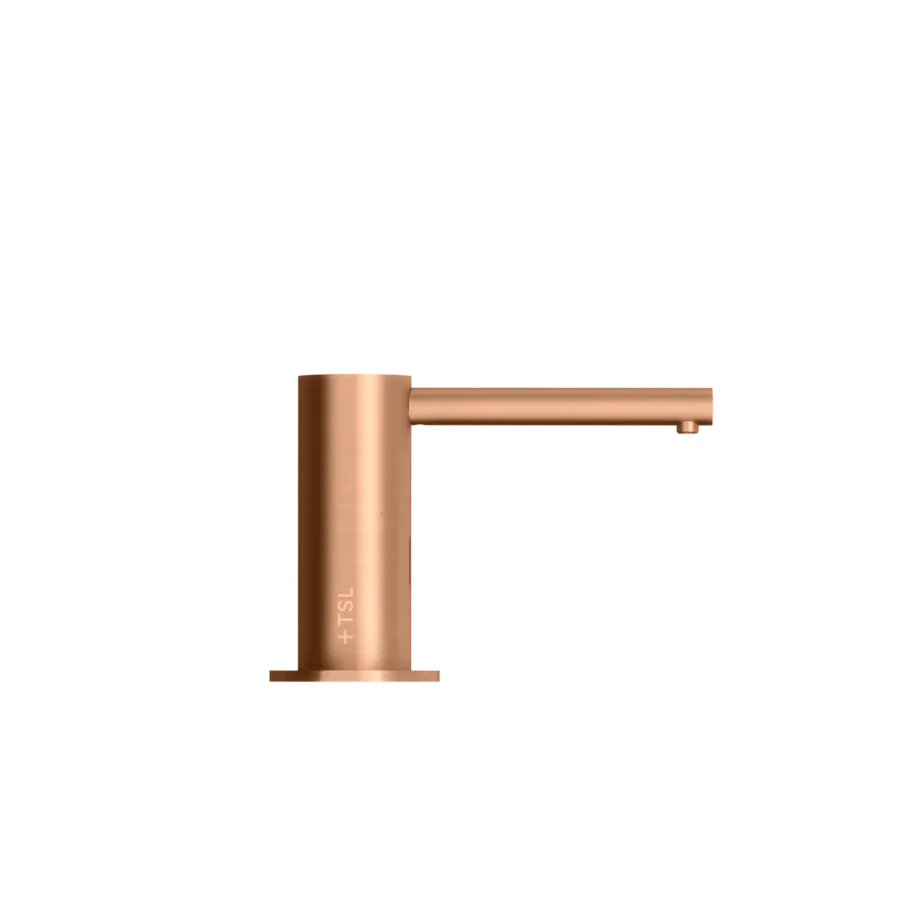

    Milled from solid stainless steel and available in our 4 signature PVD finishes

    The resulting simplicity of form and clean lines allow the IR foam soap dispenser to work across many design intents, and its thoughtful proportions have been calculated to complement our Mini Monolith basin system and deck mounted sensor tap range. The TSL.420 dispenses foam soap, a blend of soap, water and air, meaning less soap is required to wash ones hand, reducing operational costs. The included soap foamer unit incorporates dosage adjustability, giving the client control over soap usage and user experience.

    Robust infrared technology, offering sensor stability and longevity

    The TSL.420 utilises robust Infra-Red technology, offering sensor stability and longevity which is critical when specifying in public or semi-public spaces, such as offices. Every product in the range also benefits from an anti-rotation collar, which in addition to the solid steel construction gives them a durability which belies their slender looks.

    Another subtle but critical benefit of specifying the TSL.420 alongside any other product within the TSL range, is the consistency of both colour and material finish and the ability to retain a consistent visual language across the whole washroom; paramount for a cohesive user experience.

    Technical Data

    Weight

    1Kg

    Material

    AISI 304 Stainless Steel

    Power supply

    110V - 230V ac; 50/60Hz

    Output

    1000mA

    Standby power

    0.1W

    Standard discharge

    1.0ml

    Coating type

    PVD (colours only)

    Recommended soap type

    Foam soap - <10cPS viscosity. Not suitable for liquid soaps, alcohol gels or hand sanitisers

    Soap reservoir capacity

    1 Litre (standard)

    Sensor range

    Preset 70mm (adjustable using seperate controller if required)
    Max range 400mm
    Min range 60mm

    Sensor type

    Infrared

    Response time (max)

    < 300ms

    Security cut-off time

    30 seconds

    Cable lengths

    Connection to sensor cable - tbc
    Connection to fused supply - tbc

    Warranty

    2 years from date of purchase

    Technical drawings

    The Splash Lab go above and beyond to make sure the end product is exactly as designed and functioning as intended.
    PGAL International Design Firm

    Begin making the essential, exceptional

    Sensor Deck Mounted Soap Dispenser

    TSL.420

    Welcome to the support page for the TSL.420 Sensor Deck Mounted Soap Dispenser. On this page you’ll find video guides to repairs, common fixes, and general repairs. Plus there is a list of FAQs you may find helpful. If none of this answers your question. Please don’t hesitate to get in touch.

    FAQs

    What is the current lead time on your products?

    The current lead time on all our products is 6 to 8 weeks.

    Do you offer an installation service?

    Yes, we can offer an installation service to suit your needs. Please contact technical@thesplashlab.com with details of your requirements and we will be happy to assist.

    What is the warranty on your sensor soap dispensers?

    2 years parts 1 year labour*

    Where can I obtain spare parts?

    Any spare parts related to your product can be found above. If you would like to see our full range of spare parts please click here.
