TSL.R021

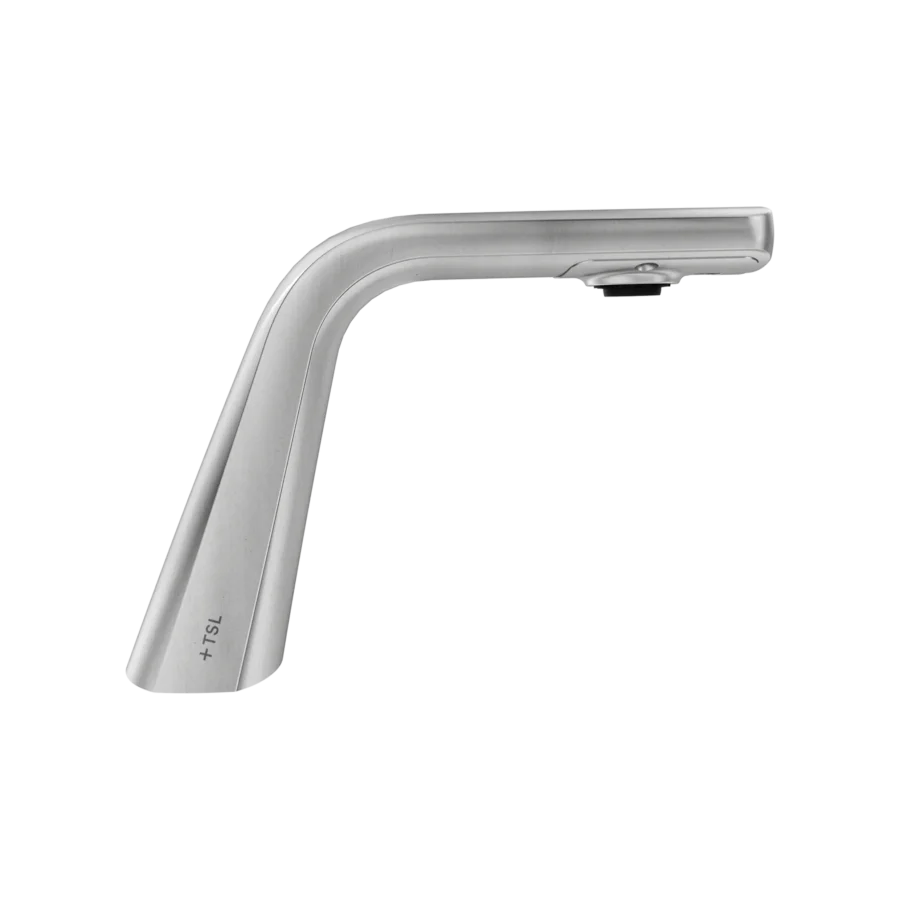

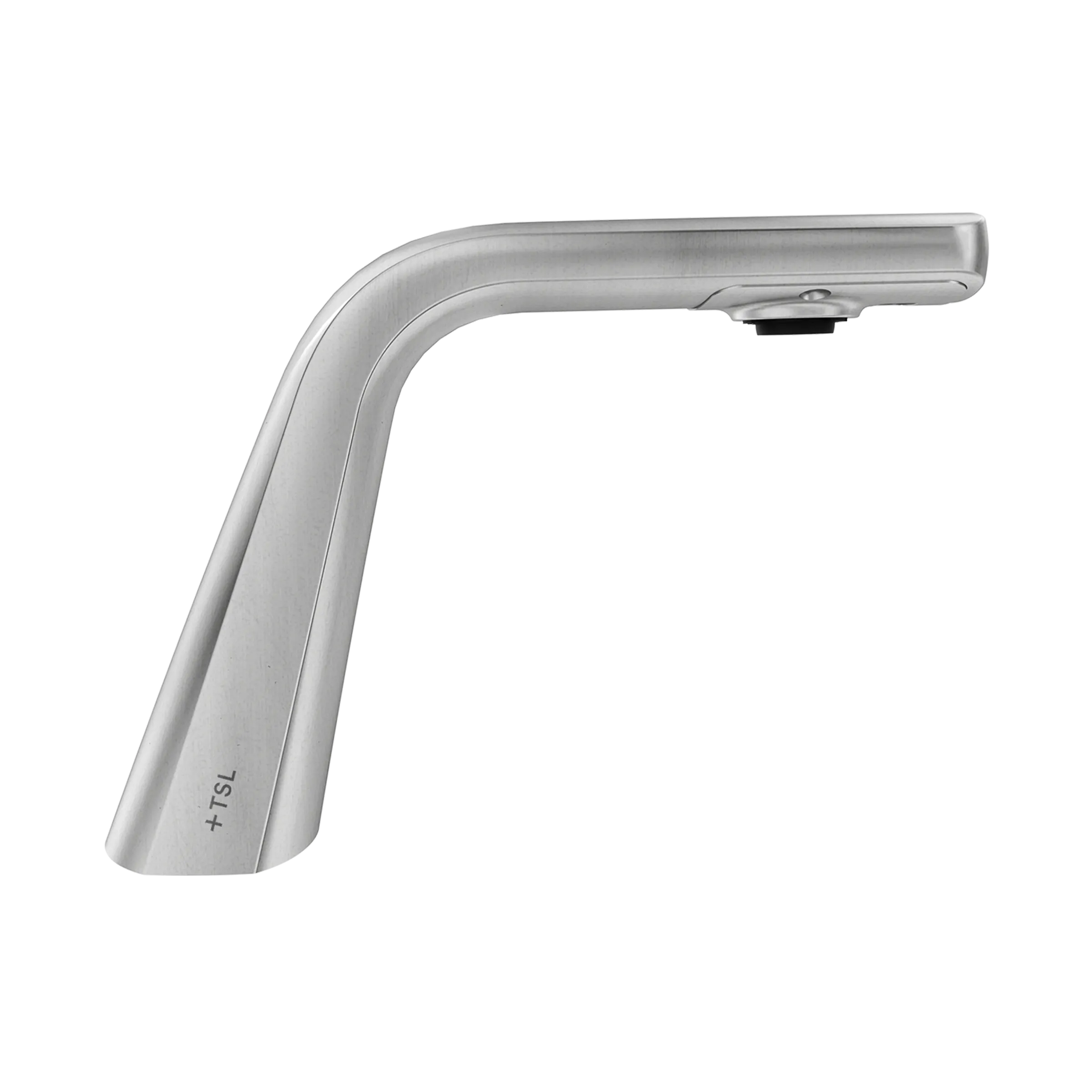

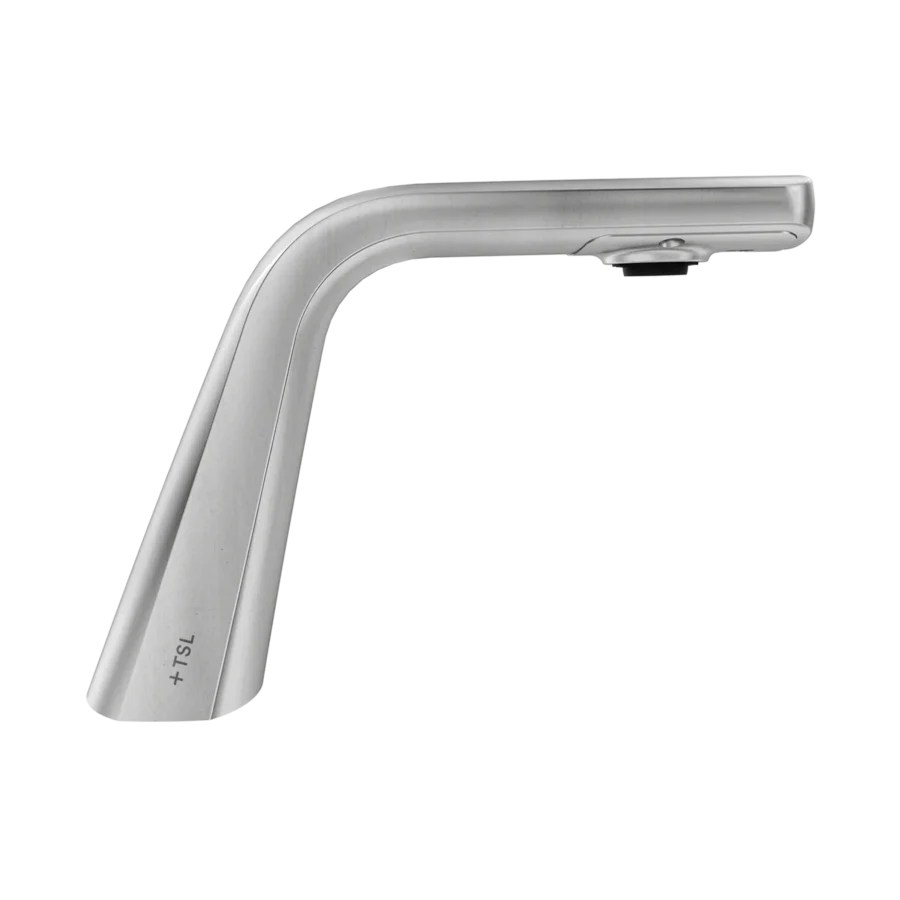

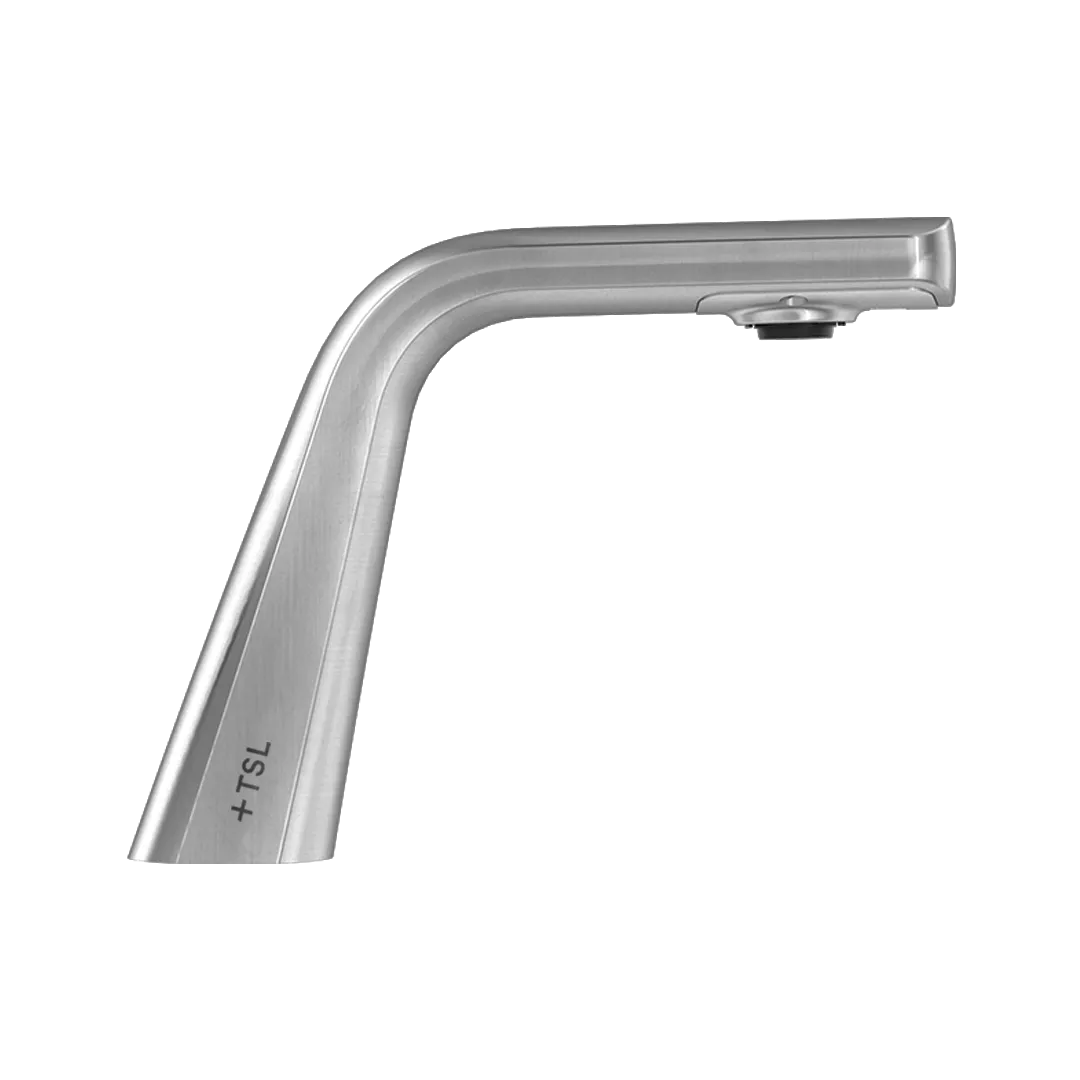

The Ribbon Sensor Tap 2.0

View downloads
  • Touch-free Ribbon Sensor
  • Award winning design
  • Easy maintenance
  • Anti-rotational fixing
Clear
Download data sheet

Engineered for performance. Designed to look amazing.

The Ribbon Sensor Tap 2.0 delivers an outstanding hand-washing experience in any scale of restroom. Designed by Sebastian Conran, the touch-free Ribbon Sensor Tap features best in class digital proximity detection, IR activation with a 30-second security cut-off, a cassette nozzle for easy maintenance and a .5gpm water-saving aerator (0.35gpm also available).

Specified individually or as part of the Ribbon Collection trio, the unique deck-mounted design provides an intuitive hand-washing experience at the sink. An adjustable cassette system allows the specifier to select the water flow rate, ensuring it conforms to local environmental regulations to achieve optimal water savings (comes with a 4 litres per minute standard with options for 1.89 and 6 litres per minute).

Perfect for high-traffic restrooms

Currently installed in public and commercial restrooms around the world, including Heathrow and Newark airports, offices and showrooms in Chicago and Riga, and shopping malls in Sweden and Finland, the Ribbon Sensor Tap is durable and robust as well as being incredibly beautiful.

WRAS, BREEAM and LEED v4 compliant, the award-winning Ribbon Sensor Tap features anti-rotation fittings to prevent movement of the head at the sink and is now available in polished chrome or five brushed stainless steel PVD finishes, plus it can be specified with mains or battery power. This great looking tap also delivers peace of mind when you specify due to its 5 year warranty (1 year parts and labour; 4 years parts only).

The benefits

  • IR sensor activated
  • WRAS approved
  • BREEAM compliant
  • LEED v4 compliant
  • Adjustable flow rate
  • Easy to install
  • Low maintenance
  • Anti-splash

Reasons to choose

Design heritage
Each Ribbon product was designed by London design studio Sebastian Conran Associates. The Sensor Tap is slender, stylish and intuitive.
Solid stainless steel
The Sensor Tap is cast in pure AISI 304 solid stainless steel to ensure maximum strength, durability and beauty
Approved + Compliant
Our Sensor Tap is WRAS approved, which demonstrates it complies with the high standards set out by the UK’s water regulations and by-laws. It is also BREEAM and LEED v4 compliant, ensuring it complies with the UK’s environmental standards.
Award winning
Winner of the Good Design award by Chicago Athenaeum Museum of Architecture and Design.

Design

The Ribbon Sensor Tap 2.0 is part of The Ribbon Collection, a trio of products created to increase user flow in the washroom while reducing water on the floor, and soap and paper wastage.

Inspired by the rich heritage of British engineering, design and craftsmanship, The Splash Lab collaborated with Sebastian Conran Associates to produce a series of products that would break restroom conventions. The result was The Ribbon Collection, a slender deck-mounted set of touch-free washroom products that allows users to wash and dry their hands at the sink. Cast in high-quality solid stainless steel, the Ribbon Sensor Tap 2.0 is anti-splash, robust and reliable.

Specification

The Ribbon Sensor Tap utilises a water-saving aerator to achieve high BREEAM and LEED v4 points. It is also WRAS approved. Whether specified individually or as part of the Ribbon trio, the Sensor Tap can easily be configured to meet different washroom space requirements. Designed to work seamlessly with our Monolith Basin System.

What you receive

Inside your Ribbon Sensor Tap 2.0 box is:

A:  Ribbon Sensor Tap head

B:  Mains power-supply unit

D:  Anti-rotation plate 1

E:  Counter-top gasket

F:  Anti-rotation plate 2

G:  Fixing nut

H:  Solenoid and cable

I:  Flow restrictor

Technical Data

Ideal operating pressure

0.5 bar dynamic pressure

Flow rate

4 litres per minute standard. Options for 1.89 and 6 litres per minutes available

Water supply

Pre-mixed

Weight

~1.5Kg (3lb 5oz)

Stainless steel grade

AISI 304 stainless steel

Hot water temperature

Max 50°C

Sensor range

Preset 120mm (adjustable). Min range 60mm - Max range 400mm

Comfort delay

2 seconds ±20%

Security cut-off

30 seconds ±20%

Power supply - mains

Input - 100 - 240V; 50 - 60Hz; 1.5A
Output - 6v DC, 1A, 6W max.
Waterproof connection to sensor lead

Power supply - battery

Battery - CRP2 lithium

Warranty

3 years parts and 1 year labour (from date of purchase)

Technical drawings

The Splash Lab go above and beyond to make sure the end product is exactly as designed and functioning as intended.
PGAL International Design Firm

Begin making the essential, exceptional

The Ribbon Sensor Tap 2.0

TSL.R021

Welcome to the support page for The TSL.R021 Ribbon Sensor Tap 2.0. On this page you’ll find video guides to repairs, common fixes, and general repairs. Plus there is a list of FAQs you may find helpful. If none of this answers your question. Please don’t hesitate to get in touch.

FAQs

What is the current lead time on your products?

The average lead time on all our products is currently 6 to 8 weeks.

Where can I obtain spare parts?

Any spare parts related to your product can be found above. If you would like to see our full range of spare parts please click here.

Do you offer an installation service?

Yes, we can offer an installation service to suit your needs. Please contact technical@thesplashlab.com with details of your requirements and we will be happy to assist.
